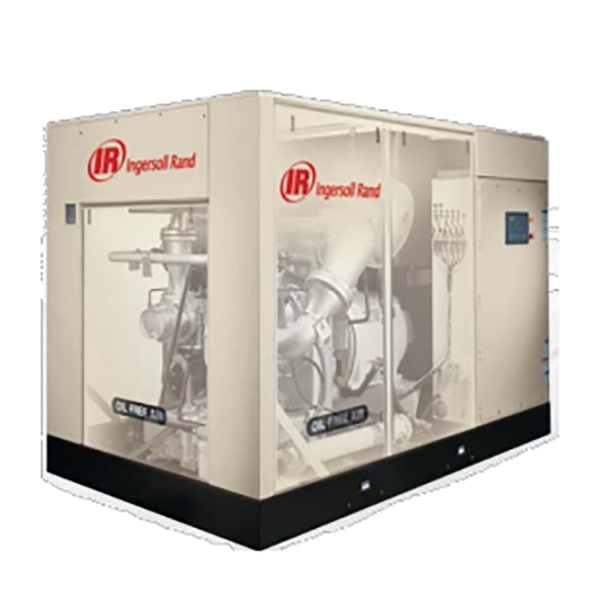

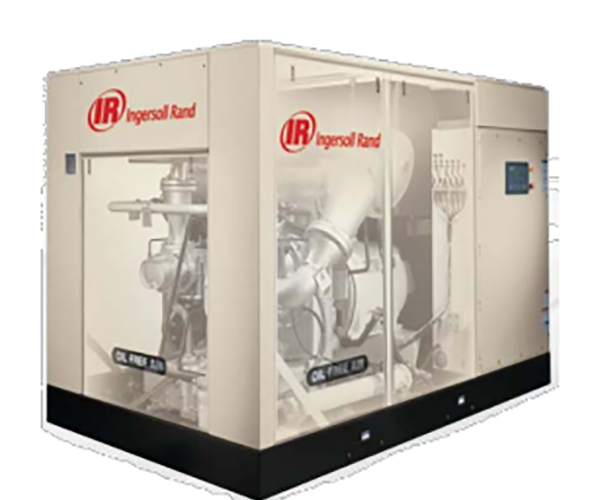

4-75kw Small Rotary Screw Air Compressor

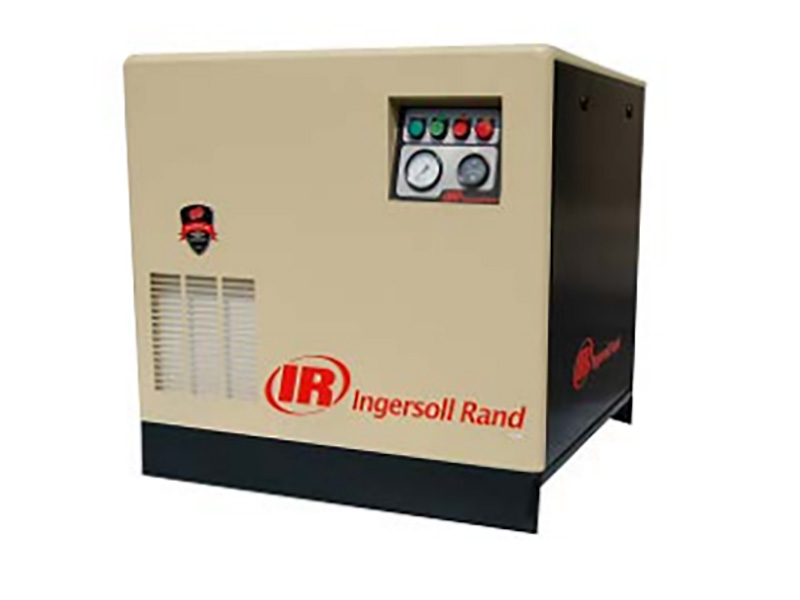

Infinity 5.5-11kw oil-flooded rotary screw air compressors

Model
Power(kw)
Air Flow(m3/min)
Voltage(V)
Frequency(Hz)
Pressure(bar)
Air Tank
R5IU-A7-X
5.5
0.83
380
50
7
w/o
R5IU-A8-X
5.5
0.78
380
50
8
w/o
R5IU-A10-X
5.5
0.70
380
50
10
w/o
R7IU-A7-X
7.5
1.10
380
50
7
w/o
R7IU-A8-X
7.5
1.03
380
50
8
w/o
R7IU-A10-X
7.5
0.91
380
50
10
w/o
R11IU-A7-X
11.0
1.63
380
50
7
w/o
R11IU-A8-X
11.0
1.52
380
50
8
w/o
R11IU-A10-X
11.0
1.35
380
50
10
w/o
R5IU-A7-X272H
5.5
0.83
380
50
7
272L
R5IU-A8-X272H
5.5
0.78
380
50
8
272L
R5IU-A10-X272H
5.5
0.70
380
50
10
272L
R7IU-A7-X272H
7.5
1.10
380
50
7
272L
R7IU-A8-X272H
7.5
1.03
380
50
8
272L
R7IU-A10-X272H
7.5
0.91
380
50
10
272L
R11IU-A7-X272H
11.0
1.63
380
50
7
272L
R11IU-A8-X272H
11.0
1.52
380
50
8
272L
R11IU-A8-X272H
11.0
1.35
380
50
10
272L

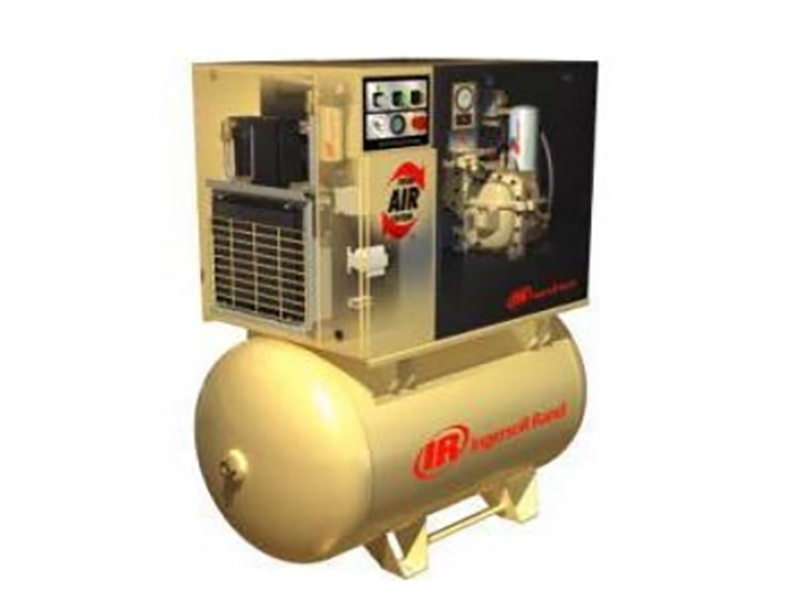

SMALL UP TAS(50HZ) 4-11kw oil-flooded rotary screw air compressors

Model
Power(kw)
Air Flow(m3/min)
Voltage(V)
Frequency(Hz)
Pressure(bar)
Air Tank
UP5-4TAS-8
4
0.55
380-415
50
8
272L
UP5-4TAS-10
4
0.45
380-415
50
10
272L
UP5-5TAS-8
5.5
0.82
380-415
50
8
272L
UP5-5TAS-10
5.5
0.74
380-415
50
10
272L
UP5-5TAS-14
5.5
0.51
380-415
50
14.5
272L
UP5-7TAS-8
7.5
1.08
380-415
50
8
272L
UP5-7TAS-10
7.5
0.96
380-415
50
10
272L
UP5-7TAS-14
7.5
0.68
380-415
50
14.5
272L
UP5-11CTAS-8
11.0
1.60
380-415
50
8
272L
UP5-11CTAS-10
11.0
1.42
380-415
50
10
272L
UP5-11CTAS-14
11.0
1.08
380-415
50
8
272L
UP5-4TAS-8-272
4
0.55
380-415
50
10
272L
UP5-4TAS-10-272
4
0.45
380-415
50
14.5
272L
UP5-5TAS-8-272
5.5
0.82
380-415
50
8
272L
UP5-5TAS-10-272
5.5
0.74
380-415
50
10
272L
UP5-5TAS-14-272
5.5
0.51
380-415
50
14.5
272L
UP5-7TAS-8-272
7.5
1.08
380-415
50
8
272L
UP5-7TAS-10-272
7.5
0.96
380-415
50
10
272L
UP5-7TAS-14-272
7.5
0.68
380-415
50
14.5
272L
UP5-11CTAS-8-272
11.0
1.60
380-415
50
8
272L
UP5-11CTAS-10-272
11.0
1.42
380-415
50
10
272L
UP5-11CTAS-14-272
11.0
1.08
380-415
50
14.5
272L

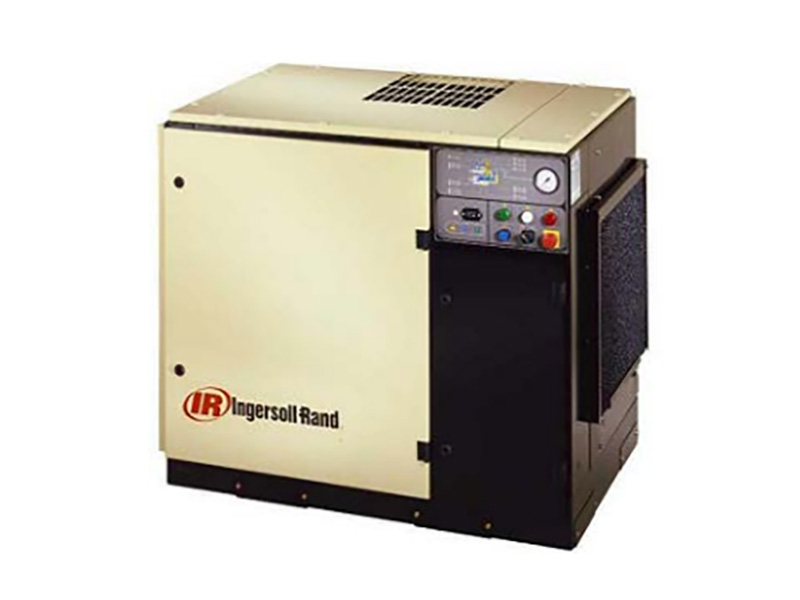

PEGASUS I 15-22kw oil-flooded rotary screw air compressors

Model
Power(kw)
Air Flow(m3/min)
Voltage(V)
Frequency(Hz)
Pressure(bar)
Control method
UP5-15-7
15
2.50
380-415
50
7
Intellect SCi
UP5-15-8
15
2.40
380-415
50
8
Intellect SCi
UP5-15-10
15
2.07
380-415
50
10
Intellect SCi
UP5-15-14
15
1.61
380-415
50
14
Intellect SCi
UP5-18-7
18.5
3.10
380-415
50
7
Intellect SCi
UP5-18-8
18.5
3.00
380-415
50
8
Intellect SCi
UP5-18-10
18.5
2.61
380-415
50
10
Intellect SCi
UP5-18-14
18.5
2.01
380-415
50
14
Intellect SCi
UP5-22-7
22
3.66
380-415
50
7
Intellect SCi
UP5-22-8
22
3.45
380-415
50
8
Intellect SCi
UP5-22-10
22
3.11
380-415
50
10
Intellect SCi
UP5-22-14
22
2.32
380-415
50
14
Intellect SCi

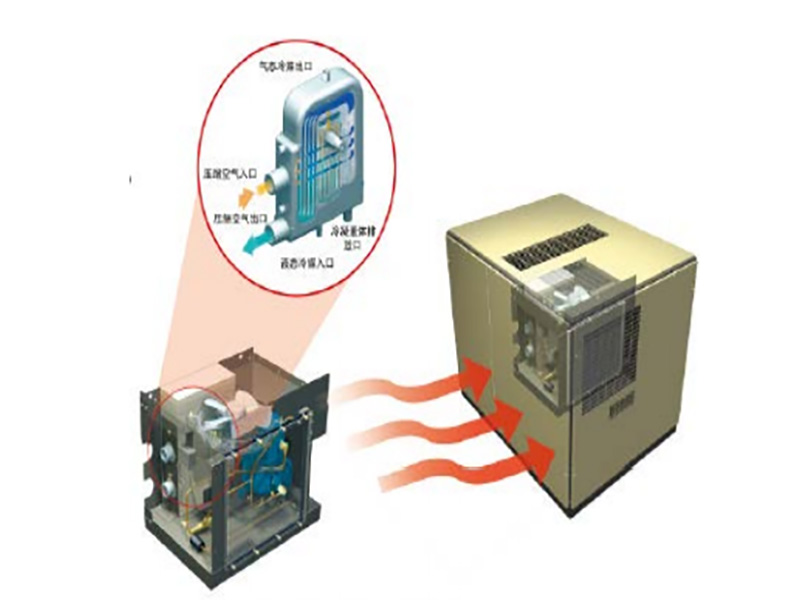

PEGASUS I-TAS 15-22kw oil-flooded rotary screw air compressors

Model
Power(kw)
Air Flow(m3/min)
Voltage(V)
Frequency(Hz)
Pressure(bar)
Control method
UP5-15TAS-7
15
2.50
380-415
50
7
Intellect SCi
UP5-15TAS-8
15
2.40
380-415
50
8
Intellect SCi
UP5-15TAS-10
15
2.07
380-415
50
10
Intellect SCi
UP5-15TAS-14
15
1.61
380-415
50
14
Intellect SCi
UP5-18TAS-7
18.5
3.10
380-415
50
7
Intellect SCi
UP5-18TAS-8
18.5
3.00
380-415
50
8
Intellect SCi
UP5-18TAS-10
18.5
2.61
380-415
50
10
Intellect SCi
UP5-18TAS-14
18.5
2.01
380-415
50
14
Intellect SCi
UP5-22TAS-7
22
3.66
380-415
50
7
Intellect SCi
UP5-22TAS-8
22
3.45
380-415
50
8
Intellect SCi
UP5-22TAS-10
22
3.11
380-415
50
10
Intellect SCi
UP5-22TAS-14
22
2.32
380-415
50
14
Intellect SCi

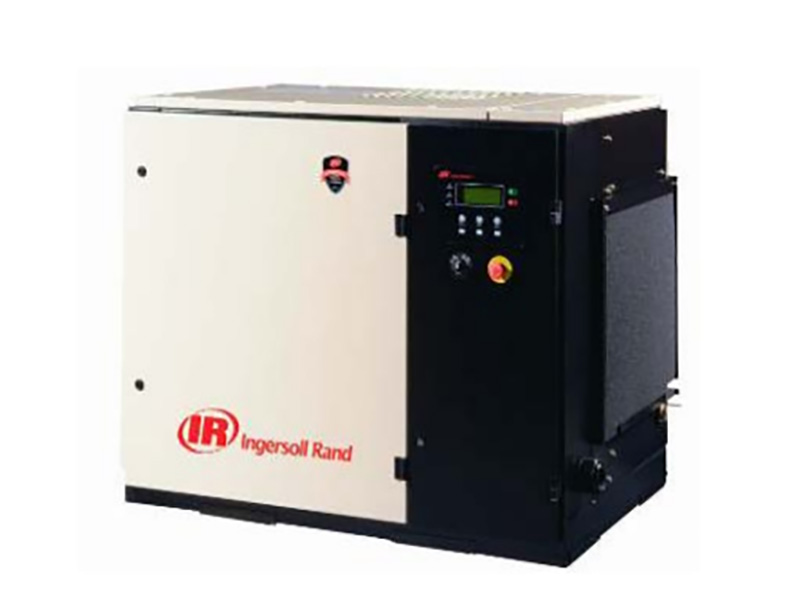

Energy Wise oil-flooded Frequency conversion rotary screw air compressors

Model
Air Flow(m3/min)
Voltage(V)
Frequency(Hz)
Pressure(bar)
Control method
EW5-15-7
2.50
400
50
7
Intellect SCn
EW5-15-8
2.40
400
50
8
Intellect SCn
EW5-15-10
2.07
400
50
10
Intellect SCn
EW5-15-14
1.61
400
50
14
Intellect SCn
EW5-18-7
3.10
400
50
7
Intellect SCn
EW5-18-8
3.00
400
50
8
Intellect SCn
EW5-18-10
2.61
400
50
10
Intellect SCn
EW5-18-14
2.01
400
50
14
Intellect SCn
EW5-22-7
3.66
400
50
7
Intellect SCn
EW5-22-8
3.45
400
50
8
Intellect SCn
EW5-22-10
3.11
400
50
10
Intellect SCn
EW5-22-14
2.32
400
50
14
Intellect SCn

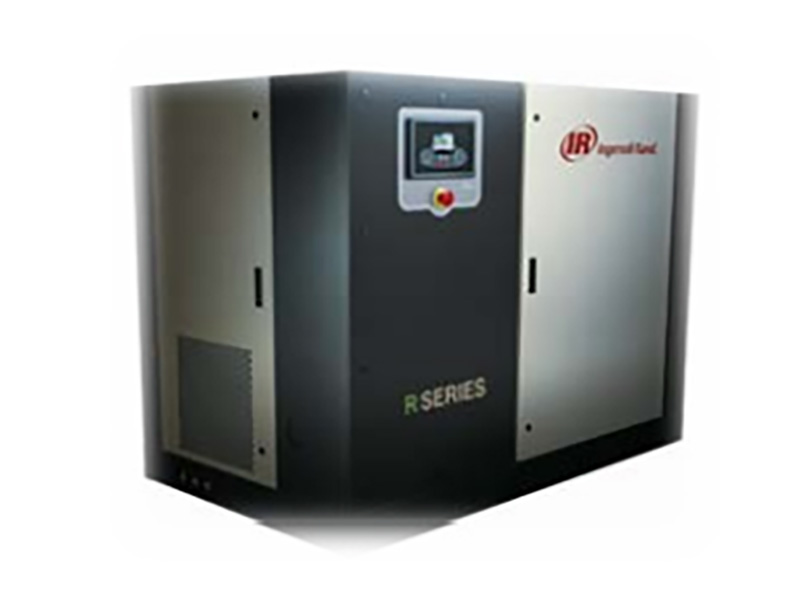

RS30-37 i oil-flooded rotary screw air compressors

Model
Air Flow(m3/min)
Voltage(V)
Frequency(Hz)
Pressure(bar)
Controller
RS30i_A7.5
5.6
400
50
7.5
Xe-70
RS30i_A8.5
5.2
400
50
8.5
Xe-70
RS30i_A10
4.8
400
50
10
Xe-70
RS30i_A14
3.7
400
50
14
Xe-70
RS37i_A7.5
7.5
400
50
7.5
Xe-70
RS37i_A8.5
8.5
400
50
8.5
Xe-70
RS37i_A10
10
400
50
10
Xe-70
RS37i_A14
14
400
50
14
Xe-70
RS30i_A7 TAS
7.0
400
50
7.0
Xe-70
RS30i_A8 TAS
8.0
400
50
8.0
Xe-70
RS30i_A9.5 TAS
9.5
400
50
9.5
Xe-70
RS30i_A13.5 TAS
13.5
400
50
13.5
Xe-70
RS37i_A7.5TAS
7.0
400
50
7.0
Xe-70
RS37i_A8.5TAS
8.0
400
50
8.0
Xe-70
RS37i_A9.5 TAS
9.5
400
50
9.5
Xe-70
RS37i_A13.5 TAS
13.5
400
50
13.5
Xe-70

R55-75i oil-flooded rotary screw air compressors

Model
Air Flow(m3/min)
Voltage(V)
Frequency(Hz)
Pressure(bar)
Controller
R55I_A7.5
10.19
380-415
50
7.5
Xe-90
R55I_A8.5
9.43
380-415
50
8.5
Xe-90
R55I_A10
8.58
380-415
50
10
Xe-90
R55I_A14
6.51
380-415
50
14
Xe-90
R55I_W7.5
10.19
380-415
50
7.5
Xe-90
R55I_W8.5
9.43
380-415
50
8.5
Xe-90
R55I_W10
8.58
380-415
50
10
Xe-90
R55I_W14
6.51
380-415
50
14
Xe-90
R75I_A7.5
13.34
380-415
50
7.5
Xe-90
R75I_A8.5
12.77
380-415
50
8.5
Xe-90
R75I_A10
11.61
380-415
50
10
Xe-90
R75I_A14
8.83
380-415
50
14
Xe-90
R75I_W7.5
13.34
380-415
50
7.5
Xe-90
R75I_W8.5
12.77
380-415
50
8.5
Xe-90
R75I_W10
11.61
380-415
50
10
Xe-90
R75I_W14
8.83
380-415
50
14
Xe-90
