Samsung Hanwha Compressor Spare Parts

PRODUCT CATEGORIES

CONTACT SMK

Part Number	Part Name
CST83031-G32	Discharge Check Valve 5″ 10KG (SM4000)
HP14-001123A	Blow off Valve (SM4000)
RTD (DUPLEX)	RTD Sensor (SM4000)
FC18-002218	O-Ring SET №2 (SM4000)
SM0900-D03	O-Ring SET №1 (SM4000)
SM0900-B03	Gasket Set (SM4000)
9100205067	Rubber Oil Seal, Bull Gear (SM4000)
AM10-00639A	Intercooler KIT (SM4000)
CST85211-G05	Blow off Valve (SM6000)
SAJV12303-G01	SM5000 #3 DIFFUSER (AL)
SAFV11222	SM5000 TIE-SHAFT
SAJV11601	SM5000 IMPELLER
SAJV11600	SM5000 ROTOR ASSEMBLY
CST51311-G02	Probe Vibration
CST51141-G02	Pressure Transmitter
CST51301-G03	Transmitter Vibration
CST51211-G02	RTD Sensor
CST13026-01	V-JOINT RUBBER(12.0”)
CST13024-01	V-JOINT RUBBER(8.0”)
CST13023-01	V-JOINT RUBBER(6.0”)
НР12-002577А	Oil seal, labyrinth 3
НР12-002576А	Oil seal, labyrinth 2
НР12-002576А	Oil seal, labyrinth 1
НР12-002580А	Air seal, labyrinth 3
НР12-002579А	Air seal, labyrinth 2
НР12-002579А	Air seal, labyrinth 1
МС04-001010А	Adjustment pad kit
МС03-003250А	Bearing 4
МС03-003249А	Bearing 3
МС03-003248А	Bearing 2
МС03-003247А	Bearing 1
HP05-000018	Oil mist element
HP05-001007A	Oil filter element
HP06-001222	Automated catcher
HP14-003298A	Discharge check valve
FC29-009980	Motor alignment pad
HP07-001070A	Oil seal cover access door
HP07-001247A	Oil seal for main oil pump
HP07-000159A	Oil seal for main oil pump flange
FC18-000198	Sealing ring G280
G180 9100201020	Sealing ring
FC18-004100	Ring ID738ХW6.99, VITON
FC18-003526	Ring ID836ХW6.99, VITON
FC18-003915A	Sealing ring ID1060ХW6.99
FC18-001246	Seal. ring AS568-385
G40 FC18-00299	Sealing ring
FC18-001393A	Ring KSB2805,Ф3.5XL2200
9100403023	Blowing valve complete
HP09-001395	Air reducer
CST83031-G44	Check valve
HP14-000555	DISCHARGE CHECK VALVE (4″ 16KG)
CWFY12401-09	BEARING-SHIM PACK
SBFR12406-00	BULL GEAR BLIND BEARING (50HZ/60HZ)
No P-No	Compressor oil (200 l) SCL-32
9100201124	Repair kit for oil heat exchanger
AM10-000641A	Repair kit for intermediate heat exchangers
No P-No	Repair kit for compressor oil cooler SM4100-1100
No P-No	Repair kit for intercooler compressor HANHVA TECHWIN SM4100-1100
CDM10048	Oil mist ejector
CST71005	Filter
CST13023-01	V-JOINT(6”)
CST13022-01	V-JOINT(5”)
9100601019-G01	LEVEL SIGHT GAGE
CST45004-G01	OIL HEATER
CST33004-02	PRESSURE CONTROL VALVE(G/BOX)
CST33007	CHECK VALVE, 2″(MOP)
CST45009	COUPLING, MAIN OIL PUMP -(IM)
CST45001-G12	MAIN OIL PUMP -(IM), 3STAGE. 60HZ
9100410040-G03	MAIN OIL PUMP -(SE) 50HZ
9100410040-G02	MAIN OIL PUMP -(SE) 60HZ
HP10-003356A	AIR BREATHER #3
HP10-003354A	AIR BREATHER #1
CST13025-01	V-JOINT RUBBER (10.0″)
CST13044	V-JOINT (8.0″)
HP14-002749A	BLOCK VALVE ASS’Y (AUTODUAL)- 6″ 110V
CST83031-G33	DISCHARGE CHECK VALVE – 6″ 10KG
CST83001-37	DISCHARGE EXPANSION JOINT (JIS 6″ 10KG)
CST66002-G04	IGV ACTUATOR ASS’Y 3″
CST66001-G07	IGV ACTUATOR ASS’Y 3″
9100503015	INLET EXPANSION JOINT(12″)
SAFV12103-G02	#1 DIFFUSER (SUS)
SAJV12303-G01	#3 DIFFUSER (AL)
SAFV12203-G01	#2 DIFFUSER (AL)
HP12-002011A	OIL SEAL, BULL GEAR
1612400001-G01	#1 & #2 CARBON SEAL ASS’Y
SAFV12406-00	BULL GEAR BLIND BEARING(50HZ/60HZ)
SAFV12403-00	#3 BEARING(50HZ/60HZ)

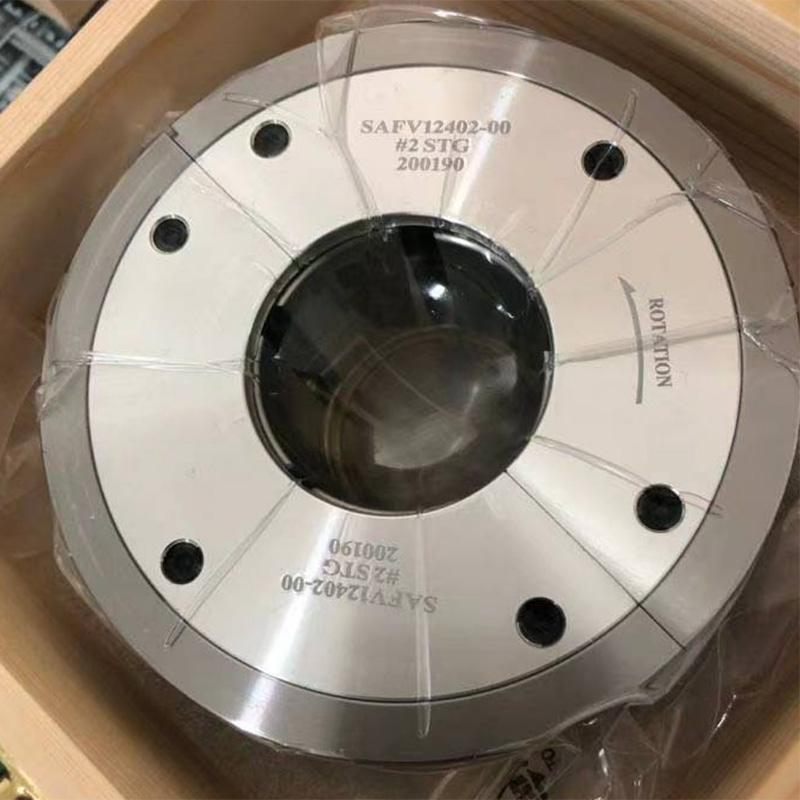

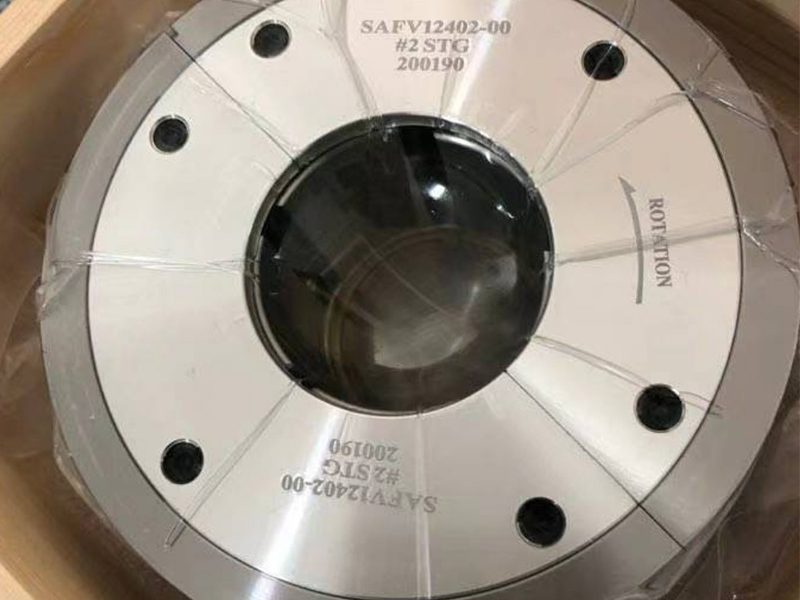

SAFV12402-00	#2 BEARING(50HZ/60HZ)
SAFV11250	#2 PINION ASS’Y
SAFV11106	#2 TIE-SHAFT
SAFV11505	#2 IMPELLER
SAFV11501	#1 IMPELLER
SAFV11150	#1 PINION ASS’Y
1511300001-G01	BULL GEAR ASS’Y(60HZ)
SAFVH11300-G01	BULL GEAR ASS’Y(50HZ)
CAFVH11200-G01	Shaft assembly Hanwha
CST45006-G01	Oil filter Hanwha
CAA26001-ASK01	Cooler repair kit
AM10-000633A	Repair kit heat exchanger Samsung
CST13024-01	Seal Samsung
CST13023-01	Seal Samsung
CST13025-01	Seal Samsung
CCA12402-TL	Bearing Samsung
CAA12401-TL	Bearing Samsung
CWFY12402-00	Bearing Samsung
CWFY12401-00	Bearing Samsung
CAA12408-TL	Bearing Samsung
CAA12407-TL	Bearing Samsung
CAA12406-TL	Bearing Samsung
CAA12405-TL	Bearing Samsung
CAA12404-TL	Bearing Samsung
CAA12403-TL	Bearing Samsung
CST85211-G14	VALVE Hanwha Techwin
592909191-2C	Filter element
CAFVH11200-G01	Shaft assembly Hanwha
САА25012	SEAL Samsung
AM10-000633A	Repair comp. heat exchanger Samsung
CST13024-01	SEAL Samsung
CST13026-01	SEAL Samsung
592909191-1С	FILTER ELEMENT
CMD10048	OIL MIST FILTER CMD10048
CST45003-03	oil separator
CMD10048	ELEMENT, OIL MIST FILTER

M90-160KW VSD Frequency conversion oil-flooded rotary screw air compressors

Model	Power(kw)	Air Flow(m3/min)	Voltage(V)	Frequency(Hz)	Pressure(bar)	Cotroller
M90VSD-A	90	5.5-17.1	380	50	7-10	KT
M90VSD-W	90	5.5-17.1	380	50	7-10	KT
M110VSD-A	110	7.0-20.5	380	50	7-10	KT
M110VSD-W	110	7.0-20.5	380	50	7-10	KT
M132VSD-A	132	8.29-24.1	380	50	7-10	KT
M132VSD-W	132	8.29-24.1	380	50	7-10	KT
M160VSD-A	160	9.9-29.2	380	50	7-10	KT
M160VSD-W	160	9.9-29.2	380	50	7-10	KT

185KW oil-flooded rotary screw air compressors

Model	Power(kw)	Air Flow(m3/min)	Voltage(V)	Frequency(Hz)	Pressure(bar)	Control method
ML185	185	32	380-415	50	7.5	KT
MM185	185	30	380-415	50	8.5	KT
MH185	185	27.5	380-415	50	10	KT

RS200-250ie two-stage compression oil-flooded rotary screw air compressors

Model	Power(kw)	Air Flow(m3/min)	Voltage(V)	Frequency(Hz)	Pressure(bar)	Control method
RS200ie_A7.5	200	43.6	400	50	7.5	Xe-145
RS200ie_A8.5	200	41.0	400	50	8.5	Xe-145
RS200ie_A10	200	38.5	400	50	10.0	Xe-145
RS200ie_A14	200	31.0	400	50	14.0	Xe-145
RS200ie_W7.5	200	43.6	400	50	7.5	Xe-145
RS200ie_W8.5	200	41.0	400	50	8.5	Xe-145
RS200ie_W10	200	38.5	400	50	10.0	Xe-145
RS200ie_W14	200	31.0	400	50	14.0	Xe-145
RS250ie_A7.5	250	54.1	400	50	7.5	Xe-145
RS250ie_A8.5	250	50.8	400	50	8.5	Xe-145
RS250ie_A10	250	46.6	400	50	10.0	Xe-145
RS250ie_A14	250	38.8	400	50	14.0	Xe-145
RS250ie_W7.5	250	54.1	400	50	7.5	Xe-145
RS250ie_W8.5	250	50.8	400	50	8.5	Xe-145
RS250ie_W10	250	46.6	400	50	10.0	Xe-145
RS250ie W14	250	38.8	400	50	14.0	Xe-145
RS200ie_A7.5	200	43.6	400	50	7.5	Xe-145
RS200ie_A8.5	200	41.0	400	50	8.5	Xe-145
RS200ie_A10	200	38.5	400	50	10.0	Xe-145
RS200ie_A14	200	31.0	400	50	14.0	Xe-145
RS200ie_W7.5	200	43.6	400	50	7.5	Xe-145
RS200ie_W8.5	200	41.0	400	50	8.5	Xe-145
RS200ie_W10	200	38.5	400	50	10.0	Xe-145
RS200ie_W14	200	31.0	400	50	14.0	Xe-145
RS250ie_A7.5	250	54.1	400	50	7.5	Xe-145
RS250ie_A8.5	250	50.8	400	50	8.5	Xe-145
RS250ie_A10	250	46.6	400	50	10.0	Xe-145
RS250ie_A14	250	38.8	400	50	14.0	Xe-145
RS250ie_W7.5	250	54.1	400	50	7.5	Xe-145
RS250ie_W8.5	250	50.8	400	50	8.5	Xe-145
RS250ie_W10	250	46.6	400	50	10.0	Xe-145
RS250ie W14	250	38.8	400	50	14.0	Xe-145
RS200ie_A7.5	200	43.6	400	50	7.5	Xe-145
RS200ie_A8.5	200	41.0	400	50	8.5	Xe-145
RS200ie_A10	200	38.5	400	50	10.0	Xe-145
RS200ie_A14	200	31.0	400	50	14.0	Xe-145
RS200ie_W7.5	200	43.6	400	50	7.5	Xe-145
RS200ie_W8.5	200	41.0	400	50	8.5	Xe-145
RS200ie_W10	200	38.5	400	50	10.0	Xe-145
RS200ie_W14	200	31.0	400	50	14.0	Xe-145
RS250ie_A7.5	250	54.1	400	50	7.5	Xe-145
RS250ie_A8.5	250	50.8	400	50	8.5	Xe-145
RS250ie_A10	250	46.6	400	50	10.0	Xe-145
RS250ie_A14	250	38.8	400	50	14.0	Xe-145
RS250ie_W7.5	250	54.1	400	50	7.5	Xe-145
RS250ie_W8.5	250	50.8	400	50	8.5	Xe-145
RS250ie_W10	250	46.6	400	50	10.0	Xe-145
RS250ie W14	250	38.8	400	50	14.0	Xe-145

M315-355KW-2S two-stage compression oil-flooded rotary screw air compressors

Model	Power(kw)	Air Flow(m3/min)	Voltage(V)	Frequency(Hz)	Pressure(bar)	Control method
M315-A7-2S	315	65	380-415	50	7	KT
M315-A8-2S	315	62.1	380-415	50	8	KT
M315-A10-2S	315	56.2	380-415	50	10	KT
M315-A12.5-2S	315	50.6	380-415	50	12.5	KT
M315-W7-2S	315	65	380-415	50	7	KT
M315-W8-2S	315	62.1	380-415	50	8	KT
M315-W10-2S	315	56.2	380-415	50	10	KT
M315-W12.5-2S	315	50.6	380-415	50	12.5	KT
M315-A7-2S	315	65	6000	50	7	KT
M315-A8-2S	315	62.1	6000	50	8	KT
M315-A10-2S	315	56.2	6000	50	10	KT
M315-A12.5-2S	315	50.6	6000	50	12.5	KT
M315-W7-2S	315	65	6000	50	7	KT
M315-W8-2S	315	62.1	6000	50	8	KT
M315-W10-2S	315	56.2	6000	50	10	KT
M315-W12.5-2S	315	50.6	6000	50	12.5	KT
M315-A7-2S	315	65	10000	50	7	KT
M315-A8-2S	315	62.1	10000	50	8	KT
M315-A10-2S	315	56.2	10000	50	10	KT
M315-A12.5-2S	315	50.6	10000	50	12.5	KT
M315-W7-2S	315	65	10000	50	7	KT
M315-W8-2S	315	62.1	10000	50	8	KT
M315-W10-2S	315	56.2	10000	50	10	KT
M315-W12.5-2S	315	50.6	10000	50	12.5	KT
M355-A7-2S	355	70.1	380-415	50	7	KT
M355-A8-2S	355	67	380-415	50	8	KT
M355-A10-2S	355	60.5	380-415	50	10	KT
M355-A12.5-2S	355	54.2	380-415	50	12.5	KT
M355-W7-2S	355	70.1	380-415	50	7	KT
M355-W8-2S	355	67	380-415	50	8	KT
M355-W10-2S	355	60.5	380-415	50	10	KT
M355-W12.5-2S	355	54.2	380-415	50	12.5	KT
M355-A7-2S	355	70.1	6000	50	7	KT
M355-A8-2S	355	67	6000	50	8	KT
M355-A10-2S	355	60.5	6000	50	10	KT
M355-A12.5-2S	355	54.2	6000	50	12.5	KT
M355-W7-2S	355	70.1	6000	50	7	KT
M355-W8-2S	355	67	6000	50	8	KT
M355-W10-2S	355	60.5	6000	50	10	KT
M355-W12.5-2S	355	54.2	6000	50	12.5	KT
M355-A7-2S	355	70.1	10000	50	7	KT
M355-A8-2S	355	67	10000	50	8	KT
M355-A10-2S	355	60.5	10000	50	10	KT
M355-A12.5-2S	355	54.2	10000	50	12.5	KT
M355-W7-2S	355	70.1	10000	50	7	KT
M355-W8-2S	355	67	10000	50	8	KT
M355-W10-2S	355	60.5	10000	50	10	KT
M355-W12.5-2S	355	54.2	10000	50	12.5	KT
